INDUSTRIAL BUILDINGS

Capability

Modular Connections, LLC utilizes its vast experience in a variety of building and wall system applications to serve commercial and industrial facilities with a wide array of solutions. Industrial facilities have numerous needs that can be met with Modular Connections’ high quality prefabricated concrete building systems.  These applications may include server rooms, material storage, battery buildings, MCC enclosures, VFD enclosures, substation control buildings, restrooms, offices, break rooms, guard houses, sound attenuated control booths, storm shelters, and any number of alternate or combined building applications.  In serving the industrial market, Modular Connections has enhanced its design capabilities to include blast rated designs that can be customized to the needs of our customers.  In addition to our buildings, our Fire Rated, Ballistic Rated, and Sound Attenuated wall systems offer fast-track screening solutions for a wide variety of industrial applications.  The primary benefits offered to industrial clients include competitive pricing, off-site construction with precise installation scheduling, “plug and play” solutions, durability, customization, and the flexibility of future relocation.

Serving customers all over the nation, Modular Connections has extensive experience in working with state regulatory authorities to ensure that customers receive high quality buildings. For more information about numerous industrial facility solutions offered, see the table below, or contact us directly.

PRODUCT: MODULAR BUILDINGS

Applications

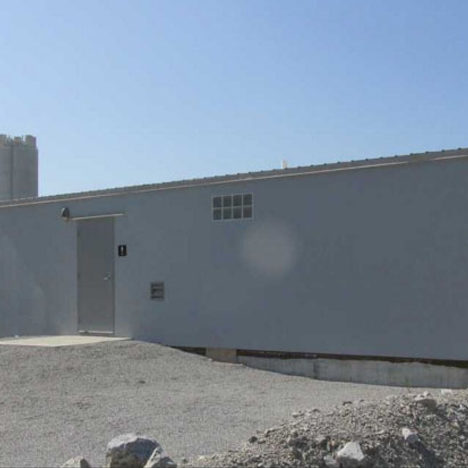

• Restrooms

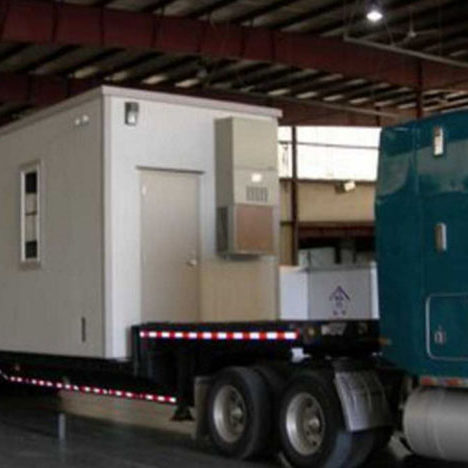

• Offices
• Break Rooms
• Employee Storm Shelters
• Guard House
• Substation Control Buildings
• MCC Buildings
• VFD Buildings
• Generator Shelters
• Battery Buildings
• Control Booths
• Sound Attenuated Buildings
• Server Rooms

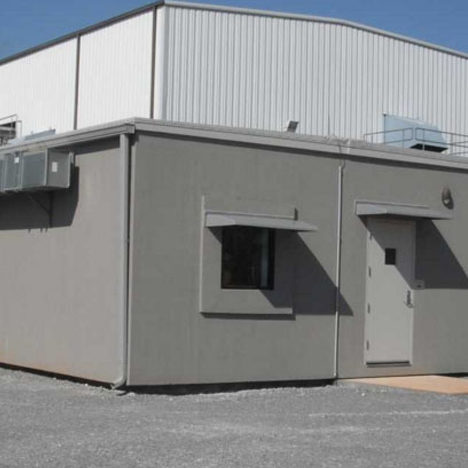

• Blast Rated Buildings

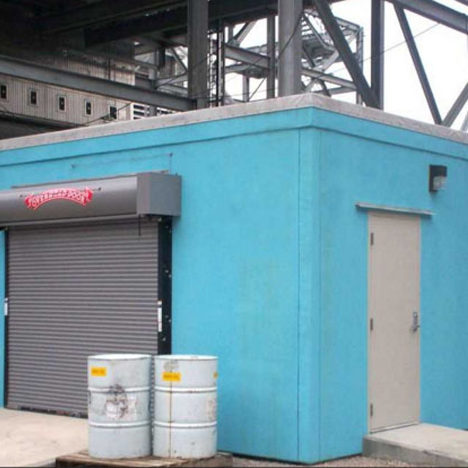

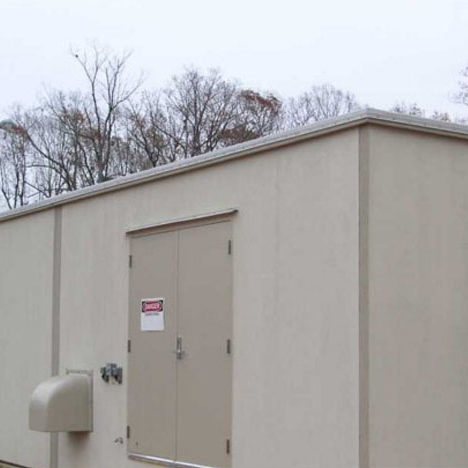

• Material Storage Buildings
• Containment Buildings
• Physical Security
• Fire Wall Systems

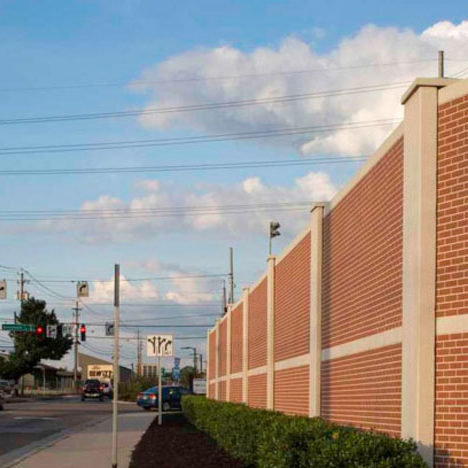

• Ballistic Wall Systems
• Sound Attenuated Wall Systems

Concrete Thickness

• 4”  Walls & Roof – 8” Floor – Standard
• Upgrades Available for Specialized Applications

Exterior Length for Single Module

• 8’ to 36’
• Multiple Modules Can be Combined

Exterior Width for Single Module

• 8’, 10’, 11’8”, 13’8” or 15’8” **
• Multiple Modules Can be Combined**
• 15’8”W Modules Limited to 30’L **

Interior Height

• 8’, 9’, 9’9”, or 11’
  ** Custom Height Available Upon Request

Options

• HVAC – Various Climate Control Options
• Electrical Systems
• Emergency Power Systems
• Lighting
• Insulation and Interior Finish Options
• Specialized Flooring
• Customized Door Configurations
• Plumbing – China and Stainless Options
• Built-In Shelving & Cabinetry
• Integrated Signage & Labeling
• Alarm Systems
• Fire Suppression (Certified Fike Dealer/Installer)
• Ventilation and Louver Options
• Storm Rating Upgrades
• Blast Rating Upgrades
• Sound Attenuation Upgrades
• Windows
• Structural Reinforcements for Special Handling

Design Ratings

• 2 Hour Fire Rated – Standard
• 150 mph Wind Load Standard
• 250 mph Wind Load Optional
• UL 752 Level 4 Bullet Resistant – Concrete
• UL 752 Level 8 Bullet Resistant – Optional Upgrade for Concrete Walls/Roof
• UL 752 Level 9 Bullet Resistant – Optional Upgrade for Concrete Walls/Roof
• 50+ Year Building Life Cycle
• Blast Rated Upgrades Available

Foundation Types

• Concrete Slab – Standard
• Pier & Beam – Standard
• Compacted Gravel – Standard
• Elevated – Optional
• Custom/Specialty Application – Optional
• Standard Foundation Designed to 2,500 PSF Soil Bearing Capacity

Materials

• Steel Reinforced Pre-Cast Concrete
• Multiple Flooring & Interior Options

Exterior Finish

• Smooth Finish Concrete
  • Textured Paint
  • Custom Color Selections

  Exposed Aggregate

  • Greystone Gray – Standard
  • Desert Brown Tint – Optional

  Stencil Finishes

  • Brick
  • Smooth Block

  Form Liner Finishes

  • Split Block
  • Wood Patterns
  • Stone
  • Ship Lap

  Prep for Customer Furnished Site Applied Veneers

Industry Focus

• Industrial Facilities
• New Construction
• Facility Renovation
• Commercial Facilities
• Local, State, and Federal Governments
• Electric Utilities
• Water Utilities
• Waste Treatment
• Natural Gas Process and Transport
• Refining Operations
• Chemical Plants

Industry Standards

• NPCA Certified (National Precast Concrete Association)
• Modular Building Institute Member
